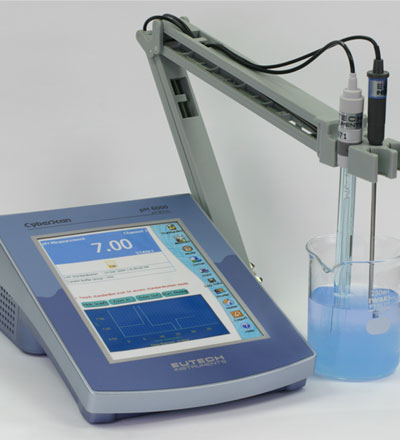

pH : Benchtop pH
Meter (CyberScan pH 6000)
Measure pH and mV with all the power of
top-of-the-line PCD 6500. The CyberScan pH 6000 offers the
same extended pH range (–2.000 to 20.000), with resolution
adjustable to 0.001 and calibration of up to five points for
exceptional accuracy (±0.002). The meter possesses extensive GLP
capabilities with customisable printer or computer output and up to
10,000 data sets logging capability per user. Print setup allows you
to print on demand so it is not just a screen dump. Applications for the PH6000 pH meter include:
Laboratory/Industrial :
Water quality testing, sewage treatment, food processing (for
HACCP compliance), geological testing. Great for R&D and QC
applications in the food and pharmaceutical industries, paper/pulp
processing, chemical industries and related fields. Suitable for
most ASTM and EPA test procedures.
Educational :
Perfect for research labs, suitable for all types of chemistry
labs and ecology studies.
Main Features :
- Auto-calibrates with up to five pH buffers from
three standard sets and fifteen different buffers; also accepts
custom buffers and manual calibration
- Accepts standard BNC pH glass electrodes and
DIN pH ISFET electrodes - no need for adapters
- Wide pH and mV measurement range of -2.000 to
20.000 pH and ± 2000.0 mV
- Advanced real-time on-screen graphing
function provides useful indication for specific measurements
such as titration.
- Extensive setup screens enable you to
customise meter to your needs, e.g. Isopotential Point,
Temperature Units, Alarm Limits and other functions.
- Windows® CE-driven, full-color touchscreen
provides unmatched ease of use in operations and setups with
user-friendly icons, user prompts and context specific ‘help’
screens.
- Advanced USB, IRDA connectivity allows
extensive host/device communication capabilities.
- Ethernet/Internet-ready with RJ45 input for
connection to LAN or Internet for quick online research and data
sharing
- Secure log-in for up to ten users.
|
|
|
|
|
Print as
you measure with touchscreen user-friendliness
|
Upload or
download data easily with SD card or USB thumbdrive
|
Even plays
media files
|
SPECIFICATIONS :
|
Product
Code
|
EC-PH5000 |
| pH Range |
-2.000
to 20.000 pH |
| Resolution &
Accuracy |
0.1/0.01/0.001
pH & ±0.002 pH |
| mV Range |
±2000.0 mV |
| Resolution &
Accuracy |
0.1 mV
& ±0.2 mV |
| Temperature Range |
-5.0
to 105.0 °C |
| Resolution &
Accuracy |
0.1 °C
& ±0.2 °C |
| No. of pH Calibration
Points |
Up to
5 |
| pH Buffer Options |
USA:
2, 4, 7, 10, 12
NIST: 1.68, 4.01. 6.86, 9.18, 12.45
Euro: 1, 3, 6, 8, 10, 12 |
| Temperature
Compensation |
Automatic/Manual
(0 to 100 °C) |
| Memory |
10,000
Data Sets with Date/Time stamping |
| Programmable data
storage/output |
On
stable, time and manual |
| Output |
USB,
IRDA, RS232C |
| Print Interval |
3 to
86400 sec |
| Time/Date Display |
12- or
24-hour format, date in U.S. or international format |
| Electrode Input |
FET
(solid-state non-glass) or Glass pH electrode |
| Display |
640x480 digit LCD |
| Power |
9VDC,
3.3A center negative |
